VOZ 12A
DESCRIPTION:

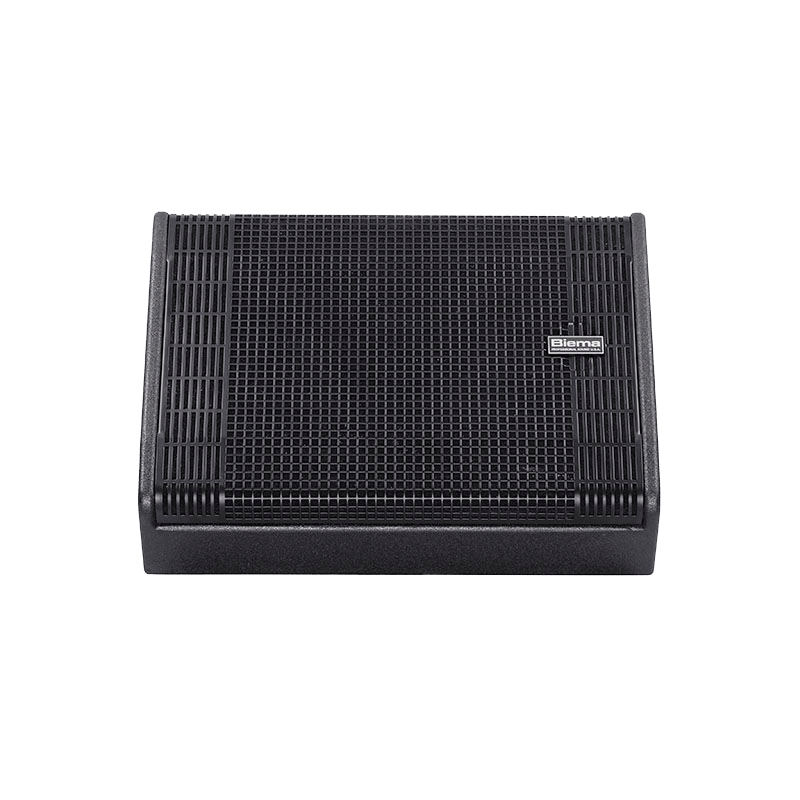

The VOZ 12A is a coaxial stage monitor designed specifically for live sound applications. It combines a high-performance coaxial transducer with a thoughtfully engineered cabinet and multiple installation eyebolts, delivering high sensitivity and clear, detailed sound across a wide range of settings.
The coaxial driver design ensures stable and consistent acoustic performance whether positioned horizontally or vertically. The high-frequency section features a low-distortion compression driver with a 1.7-inch voice coil and polyimide diaphragm for accurate, smooth highs.
Its custom horn offers precise, controlled dispersion and can be rotated to optimize sound coverage based on audience distance, ensuring the best possible sound field distribution.
FEATURES:
◦ High output stage monitor.
◦ Coaxial driver with 12 inch subwoofer.
◦ 1 "HF compression driver with horn loading.
◦ Dual angle monitoring configuration.
◦ Very compact and lightweight cabinet.
CHARACTERISTICS
INFORMATION
Model
VOZ 12A
Speaker Type
2-Way Stage Monitor
HF
1.7 “Voice Coil
LF
12’’ 3’’Voice Coil
Frequency Response
75 - 18.000 Hz
Sensitivity
98dB
Impedance
8 ohm
Max SPL
132dB
Directivity
90x60° rotatable
Power RMS
450 W
