VOZ 12
DESCRIPTION:

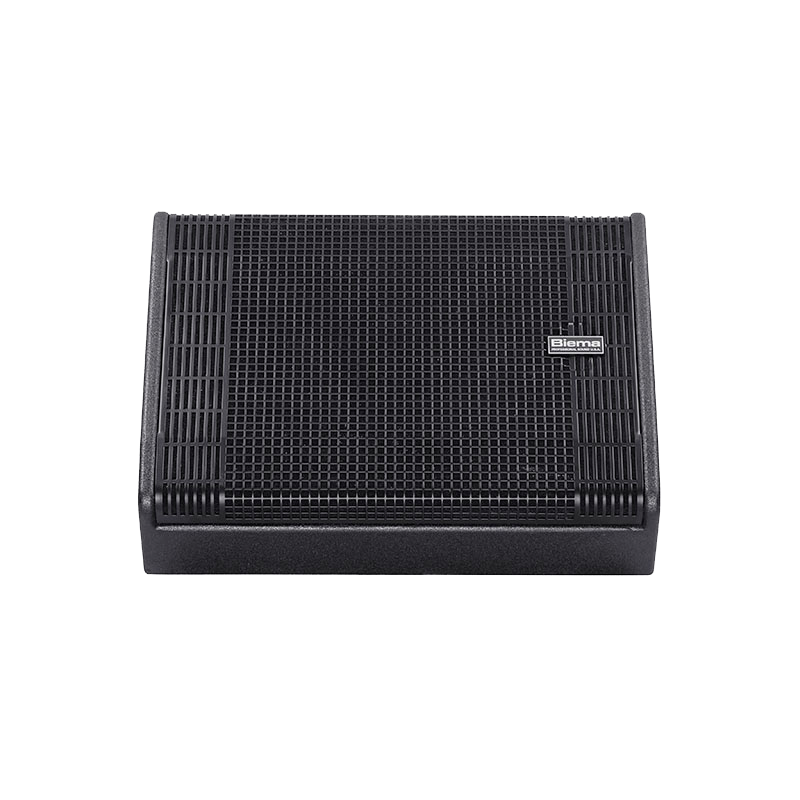

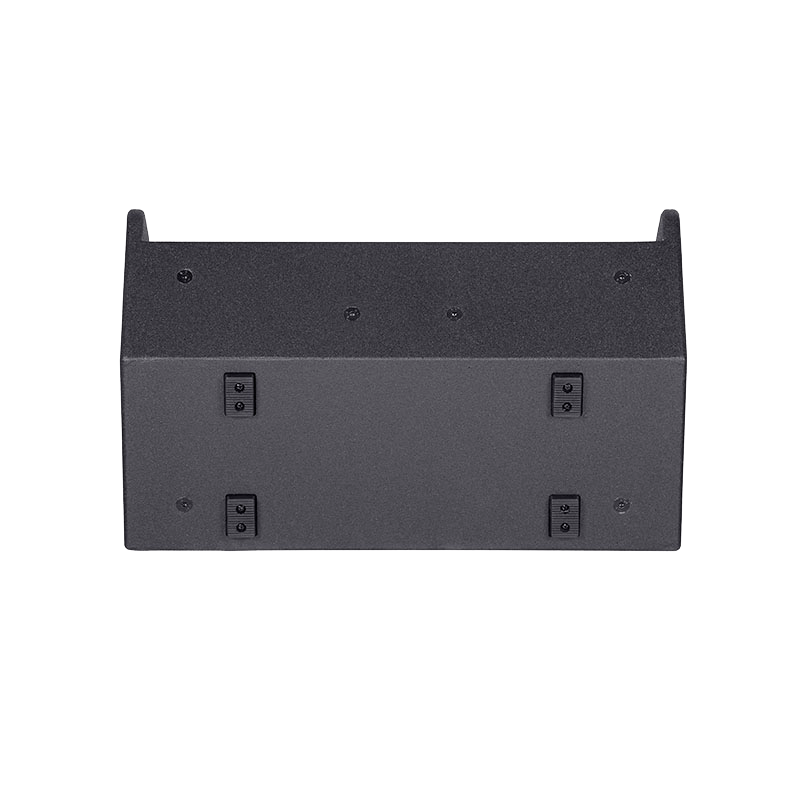

The VOZ 12 is a coaxial stage monitor designed specifically for live sound applications. It combines a high-performance coaxial transducer with a thoughtfully engineered cabinet and multiple installation eyebolts, delivering high sensitivity and clear, detailed sound across a wide range of settings.
The coaxial driver design ensures stable and consistent acoustic performance whether positioned horizontally or vertically. The high-frequency section features a low-distortion compression driver with a 1.7-inch voice coil and polyimide diaphragm for accurate, smooth highs.
Its custom horn offers precise, controlled dispersion of 60° horizontal by 90° vertical, and can be rotated to optimize sound coverage based on audience distance, ensuring the best possible sound field distribution.
FEATURES:
◦ High output stage monitor.
◦ Coaxial driver with 12 inch subwoofer.
◦ 1 "HF compression driver with horn loading.
◦ 90 ° x 60 ° rotatable horn.
◦ Dual angle monitoring configuration.
◦ Very compact and lightweight cabinet.
CHARACTERISTICS
INFORMATION
Model
VOZ 12
Speaker Type
2-Way Stage Monitor
HF
1.7 “Voice Coil
LF
12’’ 3’’Voice Coil
Frequency Response
75 - 18.000 Hz
Sensitivity
98dB
Impedance
8 ohm
Max SPL
131dB
Directivity
90x60° rotatable
Power RMS
450 W
